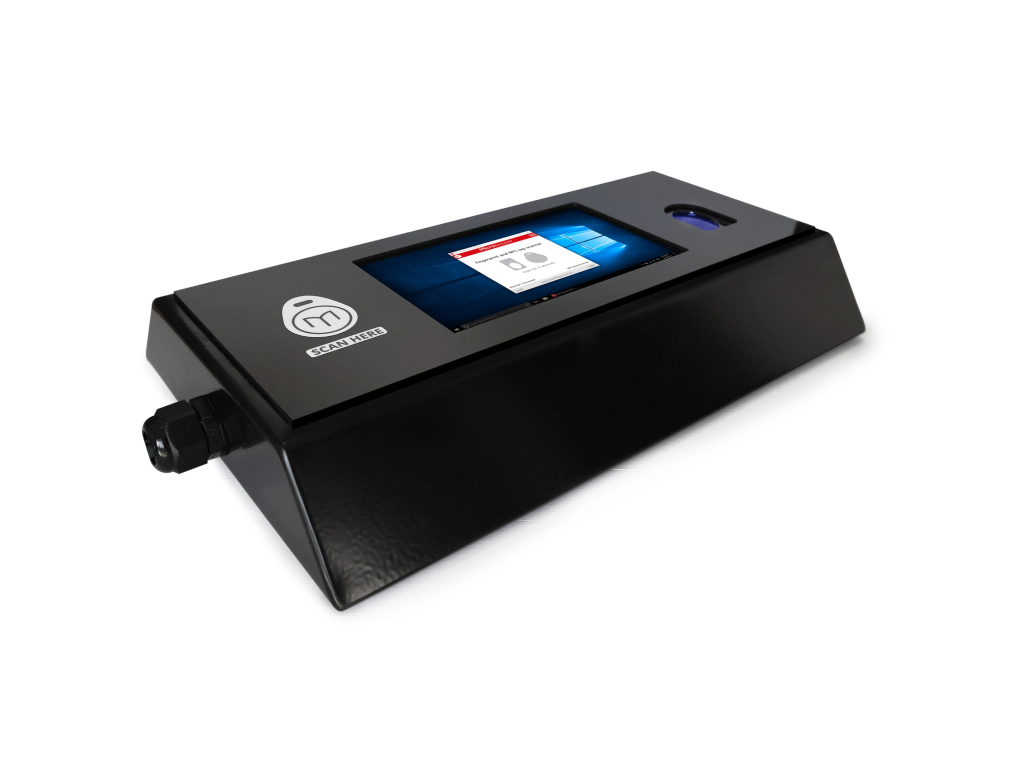

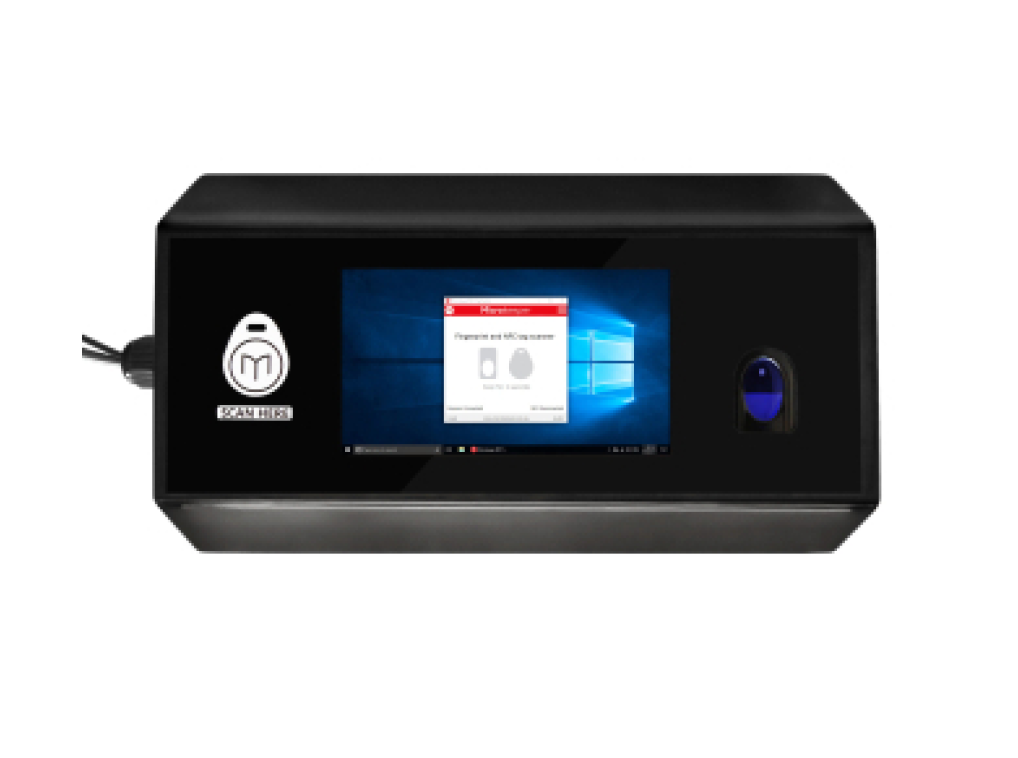

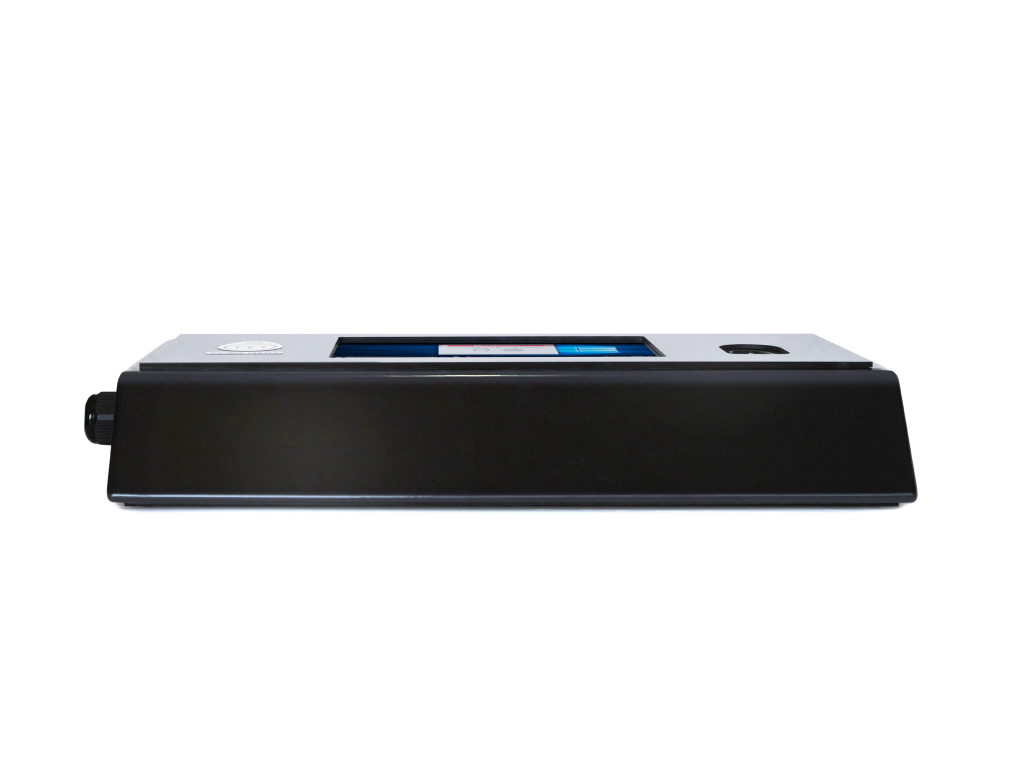

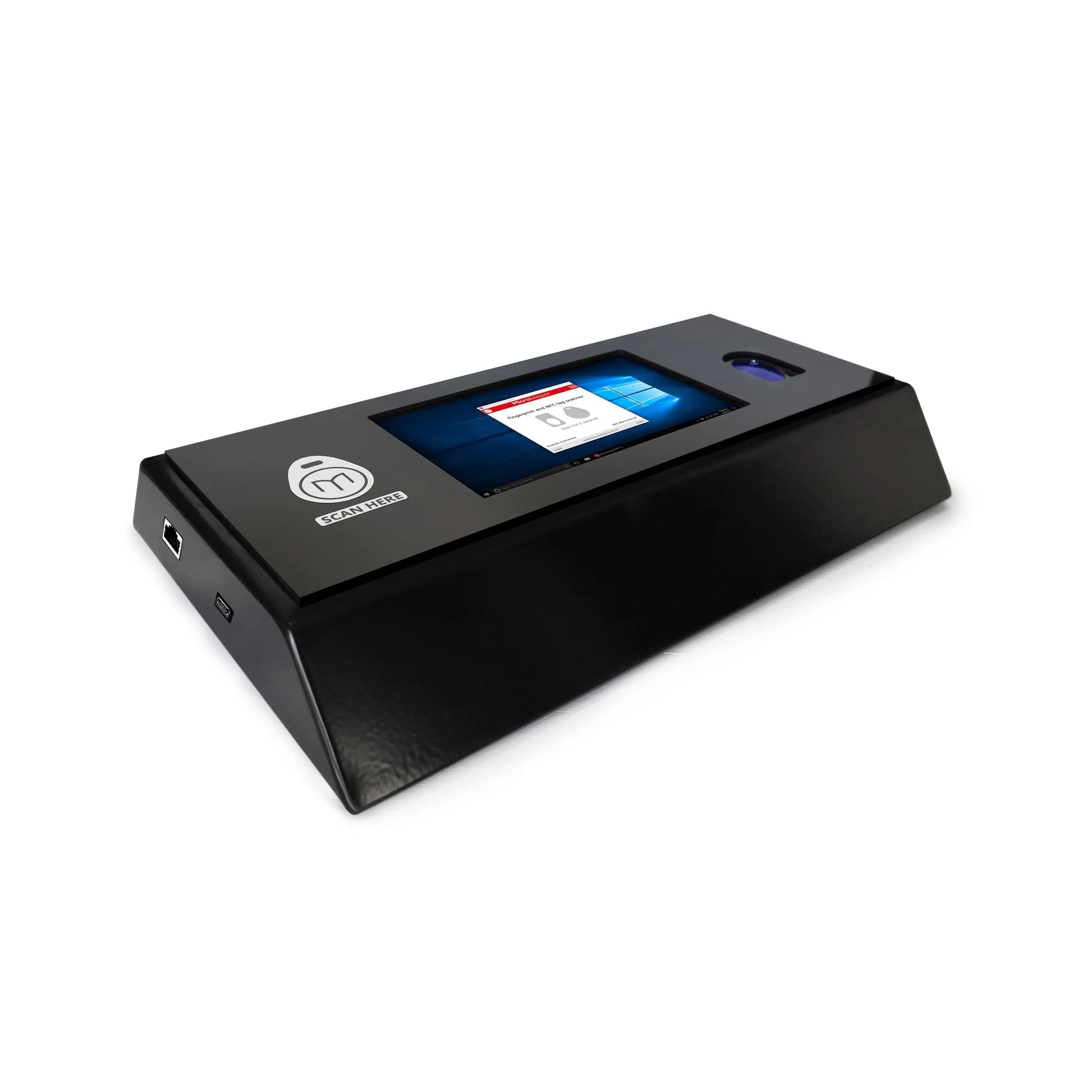

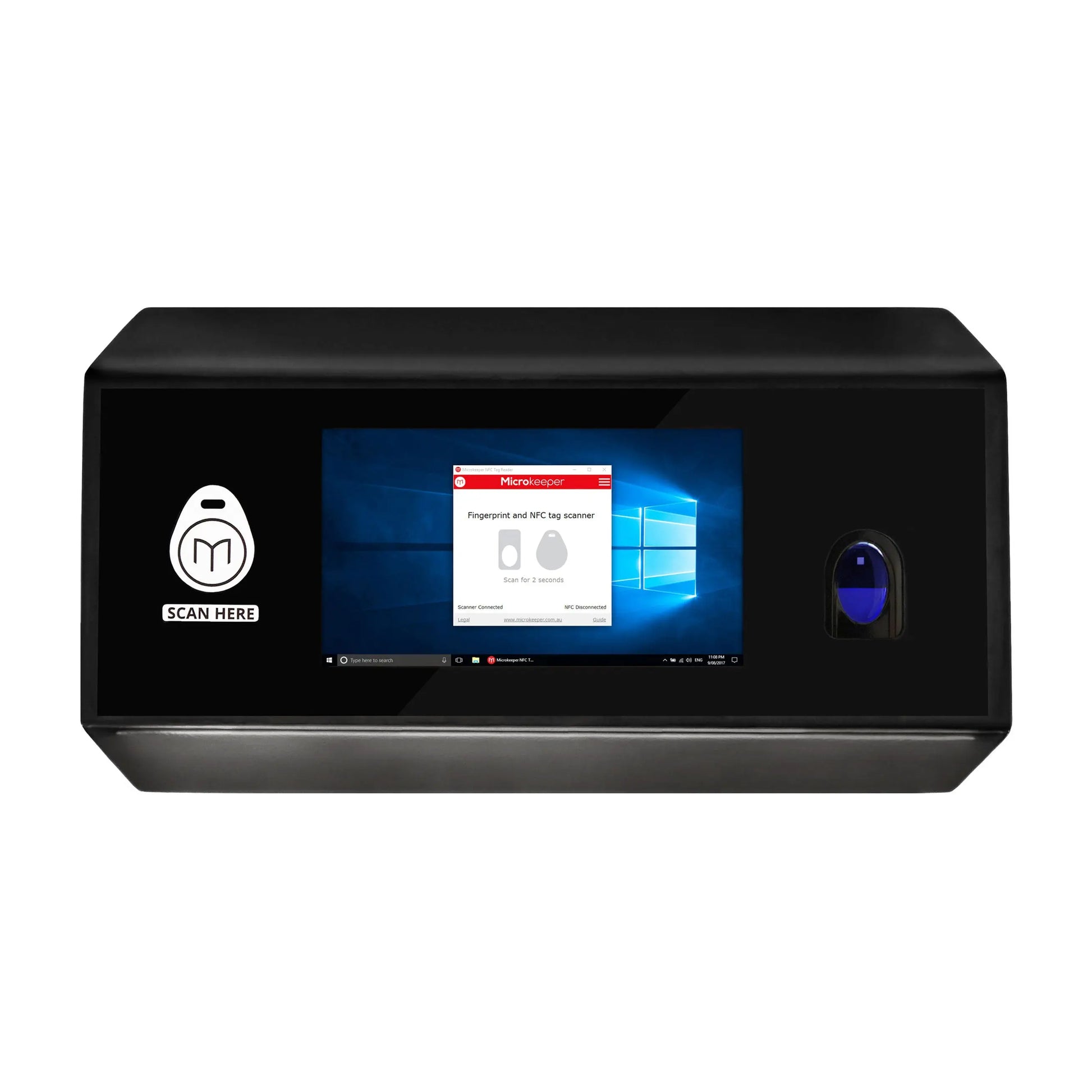

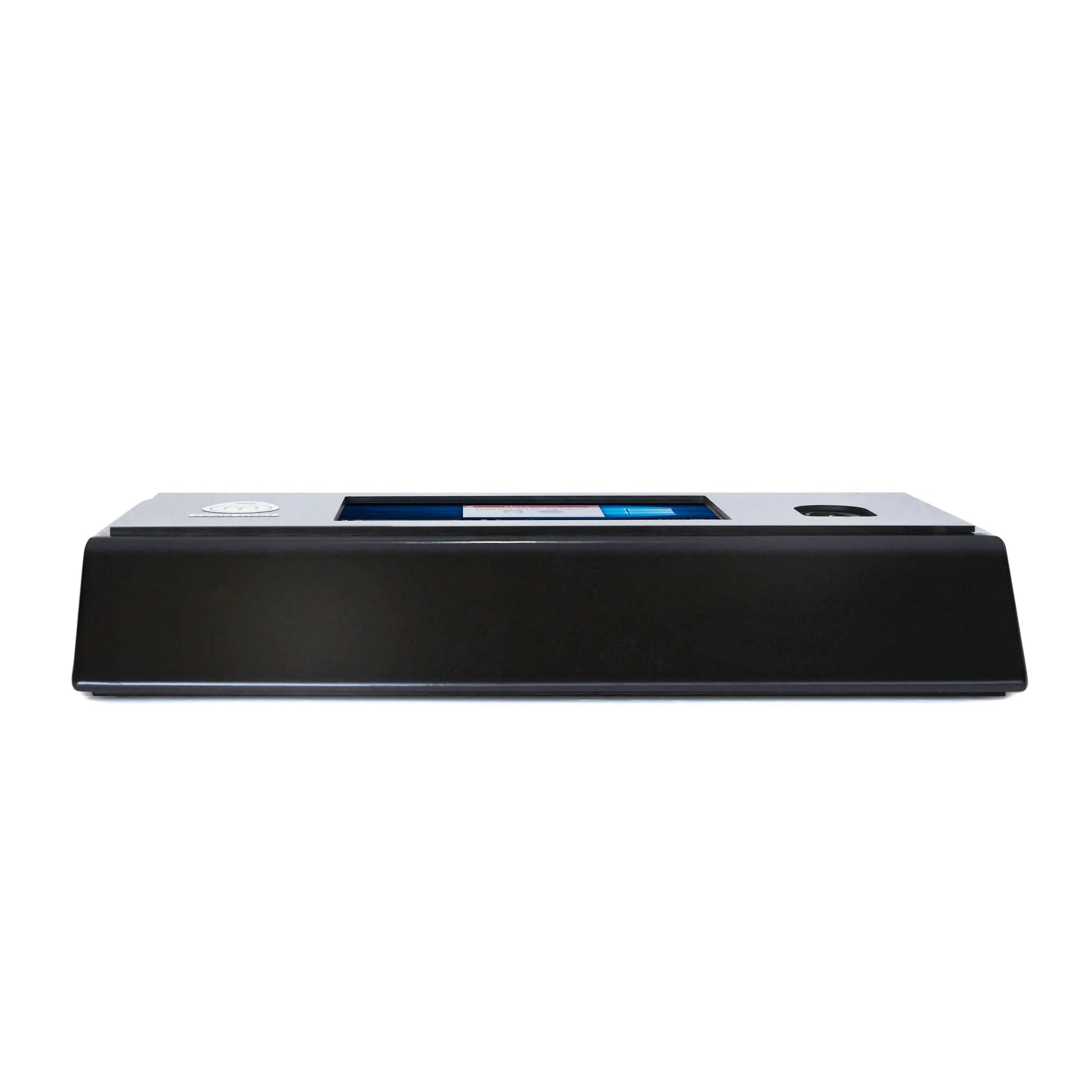

Fingerprint Clocking Station

The Clocking Station 5 is Microkeeper's new and improved flagship time and attendance solution for generating timesheet data.

Gone are the days of punch-cards or employees creating their own timesheets. By using biometric fingerprint and NFC technology, staff can clock their attendance on-site enabling management to review staff timesheets from head office.

---

Features

• 1x Biometric Fingerprint Scanner
• 1x NFC Reader
• 1x Inbuilt PC with touchscreen and LCD
• 1x rear water resistant gland for cabling
• 2mm Stainless steel with a black powder coated finish
• Acrylic face
• Internet connection via ethernet or WiFi

---

Benefits

Cloud Driven

When an employee is enrolled in the system, their encrypted enrolment is stored online; this means even if you have 20 sites, staff can clock on from any of your work sites. The setup process allows your administrative team to complete setup and review data remotely.

Faster is Better

With Fingerprint and NFC clock on you can say goodbye to usernames or passwords that can easily be shared or forgotten. A press of a finger or tap of an NFC tag and within a second, the staff member is clocked on and ready to start work.

Often a high volume of staff starting or finishing work at the same time can lead to bottlenecks when clocking on/off. The Clocking Station 5 can handle the early morning rush or end of day stampede by quickly and efficiently processing a large number of employees at once.

Review Timesheet Online

The very moment an employee clocks on the time log data is instantly available online. This gives management the ability to check attendance instantly via the Microkeeper website or apps and keep a track of attendance in real-time. Timesheet data can be reviewed and approved with a single click, ready for payroll to take the next step. Multiple locations can be viewed with ease through the Manager's Console view.

Robust

The Microkeeper console case is 1.6mm steel with a powder coated finish. The robust design reduces damage and protects components inside for many years to come.

For a more demanding workplace please see our Water Resistant Clocking Station option.

Multi-Site Business

By storing data in a central location, the collaboration of timesheet data is now completely eliminated with Microkeeper. Even if staff work across multiple sites within your business, their hours can be assigned to jobs for cost-center and performance tracking. Managers can log in from anywhere and review and approve the shifts for the locations they oversee.

Support

Microkeeper is proudly owned and operated in Australia with all setup, training and technical support included with your monthly product subscription.

No matter how big or small your issue, we ensure you can always get in touch so we can answer your questions. We are accessible via phone Monday to Friday, 9am-5.00pm and via email 24/7 along with online remote access using TeamViewer which allows screen-to-screen technical support.

---

Industry best fit

The Clocking Station 5 is a stand-alone solution that can easily process a high volume of staff whilst withstanding tough physical conditions and extended wear and tear.

Popular in:

• Manufacturing
• Warehouses
• Hospitals
• Hospitality
• Agriculture
• Retail

A Microkeeper representative can assess your business needs and recommend the best solution to fit your circumstances.

---

Setup & Support

Remote setup by Microkeeper technical support team with comprehensive software training.

Ongoing technical support included.

---

Included in the box

• Clocking Station 5
• Power Adapter

---

Accessories

Wall Mount

If you require your Fingerprint Clocking Station to be wall mounted, we have an additional wall mount bracket available to purchase (see the drop down box at the top of the product listing to include in your order).

This enables flush installation of the Fingerprint Clocking Station against any wall. A great option if you have limited counter space. We recommend having your wall mount installed by a professional tradesperson.

---

Requirements

• Reliable internet connection, preferably Ethernet
• A power point

---

Specification

Physical

Size 160mm x 340mm x 90mm (LxWxH)

Weight 5.1kg

Colour Black

Limitations

Fingerprint Capacity 10,000+

Log Capacity 100,000,000+

Fingerprint Scanner

Connection	USB 2.0
Resolution	512 ppi
Image capture area	15 x 18 mm
Sensor type	Optical
Illumination	Blue LEDs
Operating temperature	0 C - 40 C
Operating humidity	20-80 % non-condensing



NFC Scanner

Connection	USB 2.0
Compliance	CCID
Read/write speed	424 kbps
Supported Cards	ISO 14443 Type A and B MIFARE FeliCa NFC ISO/IEC 18092
Built-in anti-collision	Yes, 1 tag at a time
Operating distance	50 mm
Operating temperature	0 C - 50 C
Operating frequency	13.56 MHz



PC

Software
Included OS	Windows 10
Timesheet Software	Microkeeper Timesheet Software
Support	TeamViewer
Hardware
CPU	Intel Cherry Trail Z8350 Quad Core 1.84GHz
GPU	Intel HD Graphics
RAM	4GB DDR3L
ROM	64GB eMMC
Screen	7 inch
Resolution	1024 x 900 px
WiFi	802.11 b/g/n
Bluetooth	4.0
Multi-touch	Yes, 5 points touch

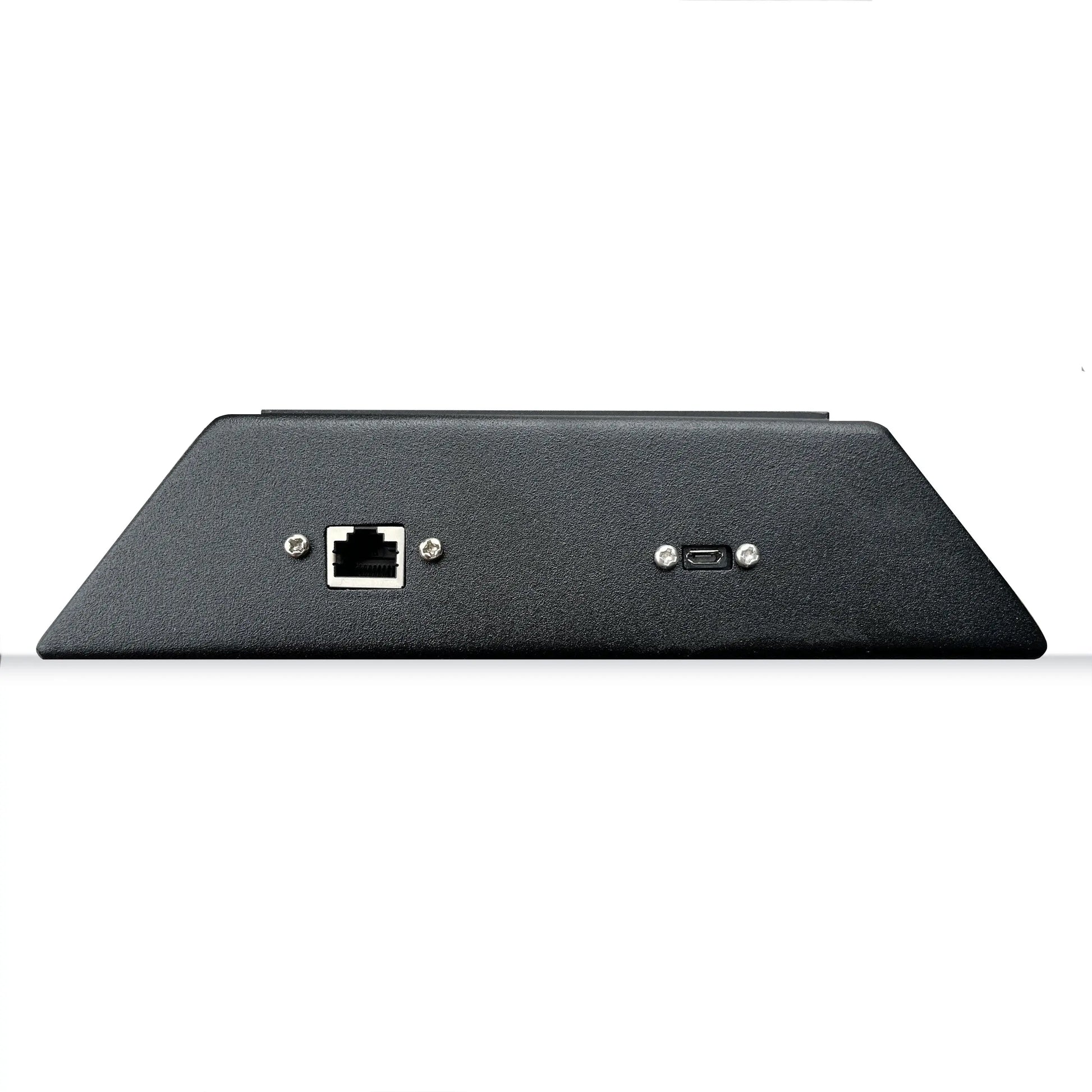

Ports
USB	x3 2 used by NFC and Fingerprint
HDMI	x1
RJ45 Ethernet	x1
Micro SD card slot	x1
Earphone	x1

Cleaning

• Only clean using a damp cloth (warm water only)
• Using anything other will void the warranty
• If you are unsure consult a Microkeeper team member before cleaning
